Back to Amiga CD32

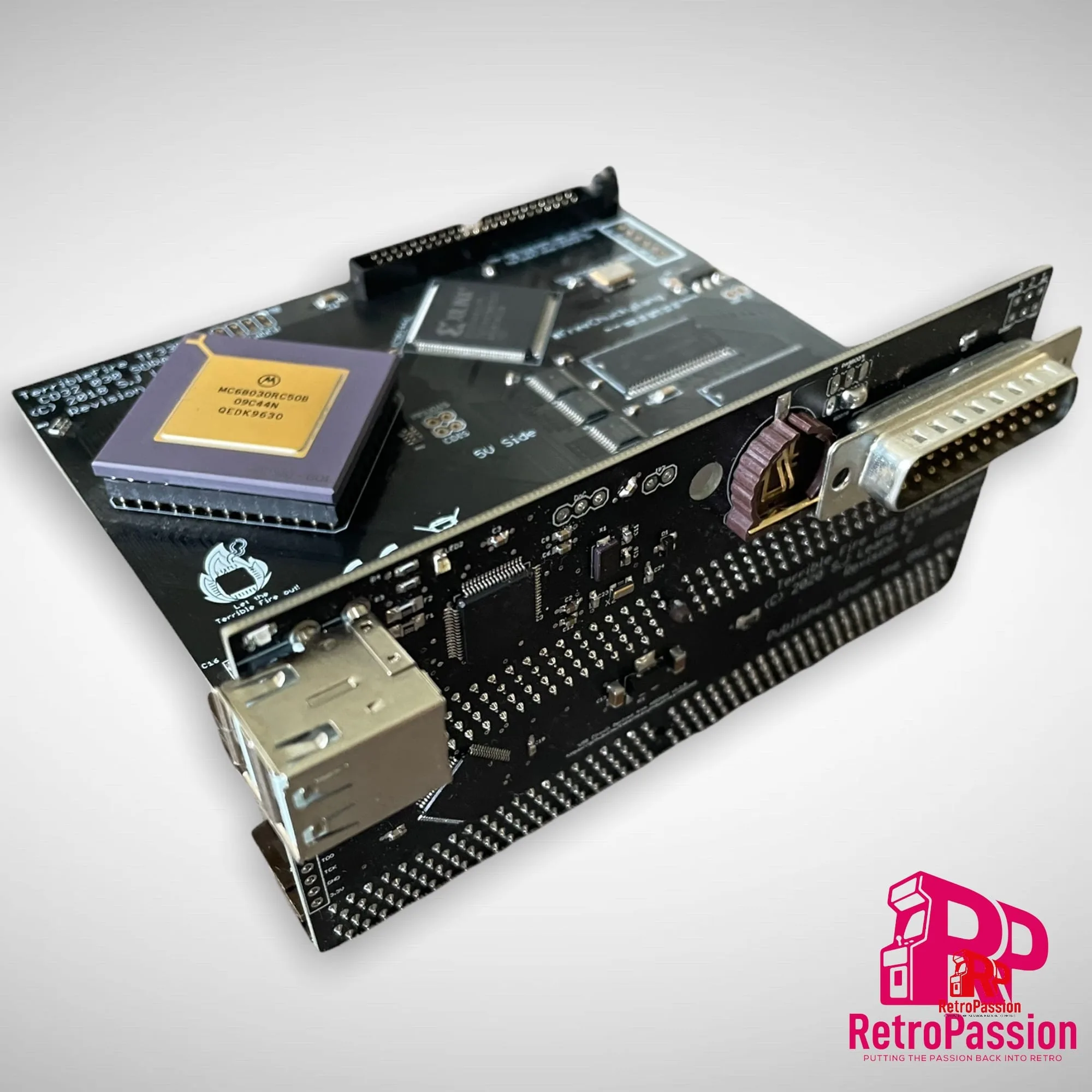

TF330 Amiga CD32 with TF Riser USB

TF330 CD32 Accelerator with TF CD32 Riser

£249.99 Ex. VAT

NO LONGER BEING PRODUCED

TF330 CD32 accelerator a perfect upgrade for your Amiga CD32. Included is a gold top Motorola 68030 CPU clocked at 50mhz, 64MB of RAM, 2.5″ IDE connector for an CF HDD Card, RGB socket, 2 x USB HID ports.

Full specs:

  • MC68030RC50C Processor
  • 64MByte of fast-ram.
  • 44 Pin IDE connector
  • Buffered DB23 (RGB out)
  • 2 x USB HID ports with following support
    • HID Keyboard support
    • HID Mouse
    • Support for Keyboard & Mouse combo
    • Support for standard HID Gamepad :
    • In Joystick mode with 3 buttons
    • In CD32 Gamepad mode
  • RTC – M6242 emulation – (Battery as an option)
Prerequisites
  • USB HID Keyboard/Mouse/Joypad
What are USB HID Ports?

USB human interface device is a part of the USB specification for computer peripherals: it specifies a device class (a type of computer hardware) for human interface devices such as keyboards, mice, game controllers and alphanumeric display devices.

Using USB HID Ports

  • After inserting USB HID devices (mouse, gamepad, keyboard + mouse combo) require to override the CD32 onboard game ports and are disabled and you need to use USB devices. You cannot mix and match. Override is indicated by LED2. Only a USB Keyboard can be used with the onboard CD32 game ports.

Supported USB devices:

Most standard USB HID mouse, keyboards and PC Gamepads. Some mouse with more than 3 buttons don’t work correctly, and combos with Bluetooth receivers.

What is TerribleFire?

Well it’s not what it’s who, and that person is Stephen Leary who has designed a whole host of accelerators and ram cards for the Amiga A500, A1200 and Amiga CD32. These include many but the most common ones are:





OUT OF STOCK

Email me when stock is available


SKU: TF330-TFR Categories: , Tags: , ,
