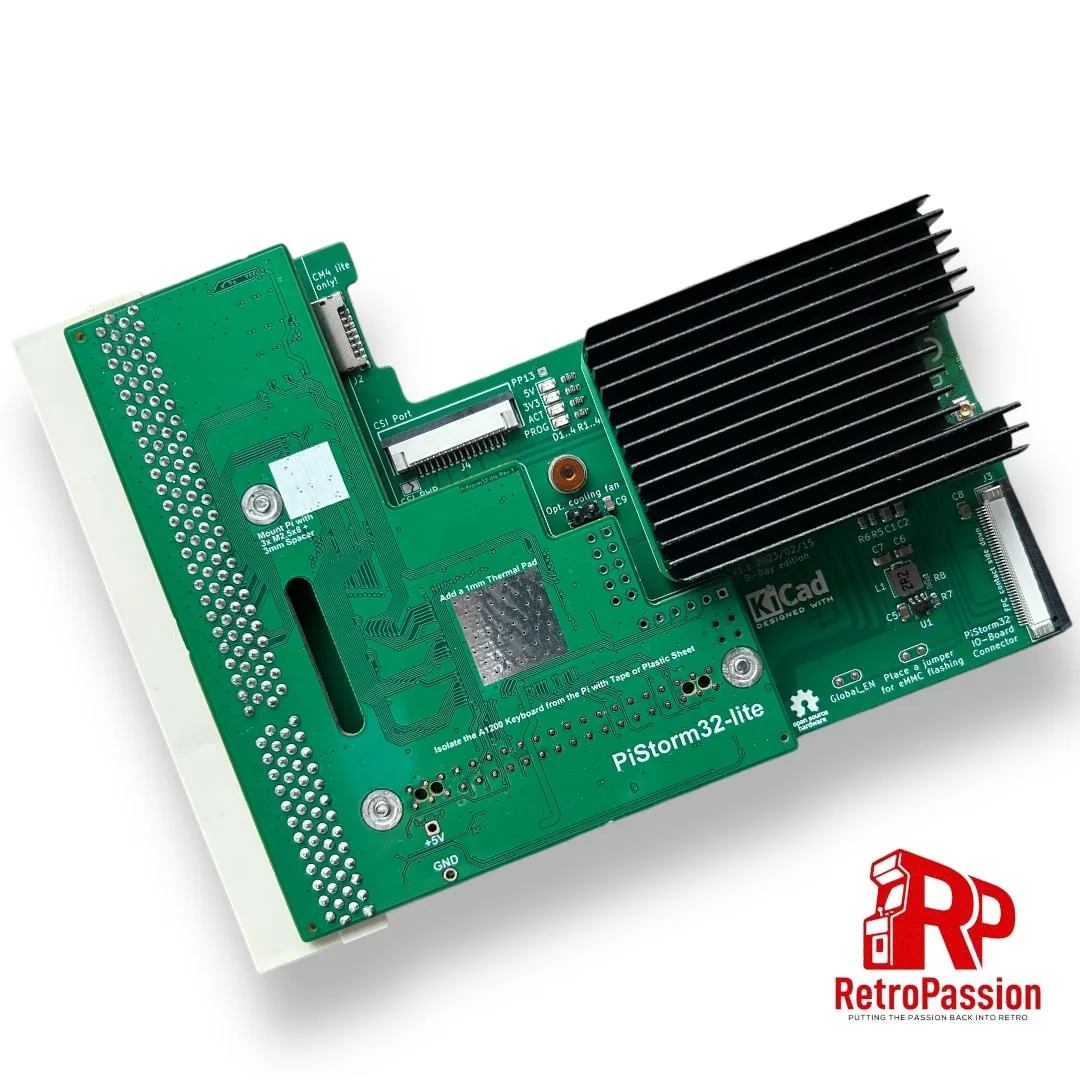

PiStorm32-Lite CM4 Module Bundle
PiStorm32-Lite CM4 Module Bundle

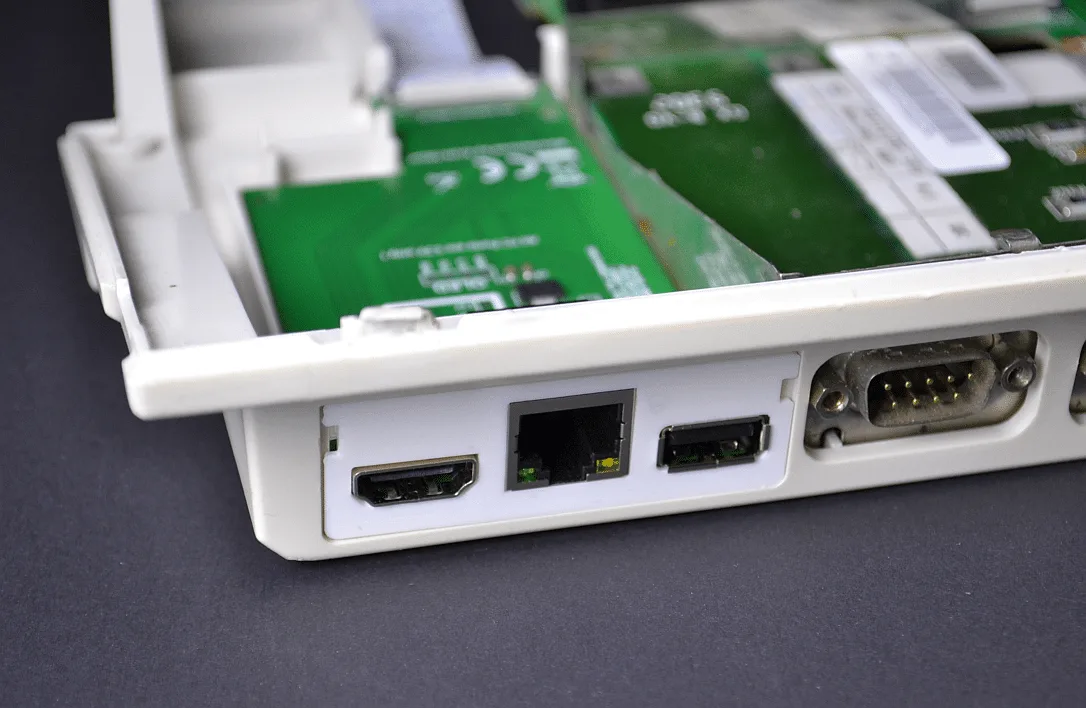

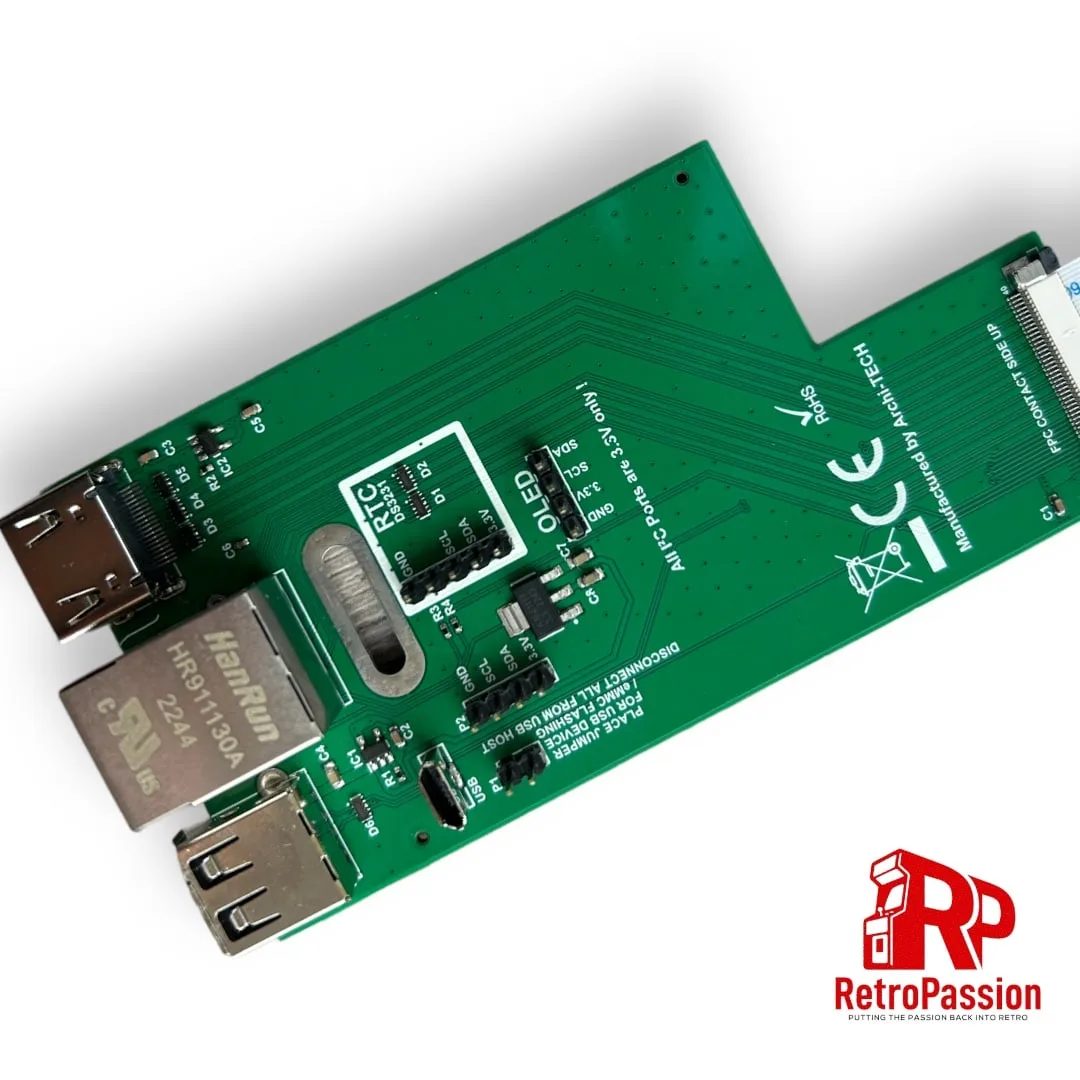

PiStorm32-Lite CM4 Expansion Breakout
PiStorm32-Lite CM4 Expansion Breakout
PiStorm32-Lite CM4 Expansion Breakout

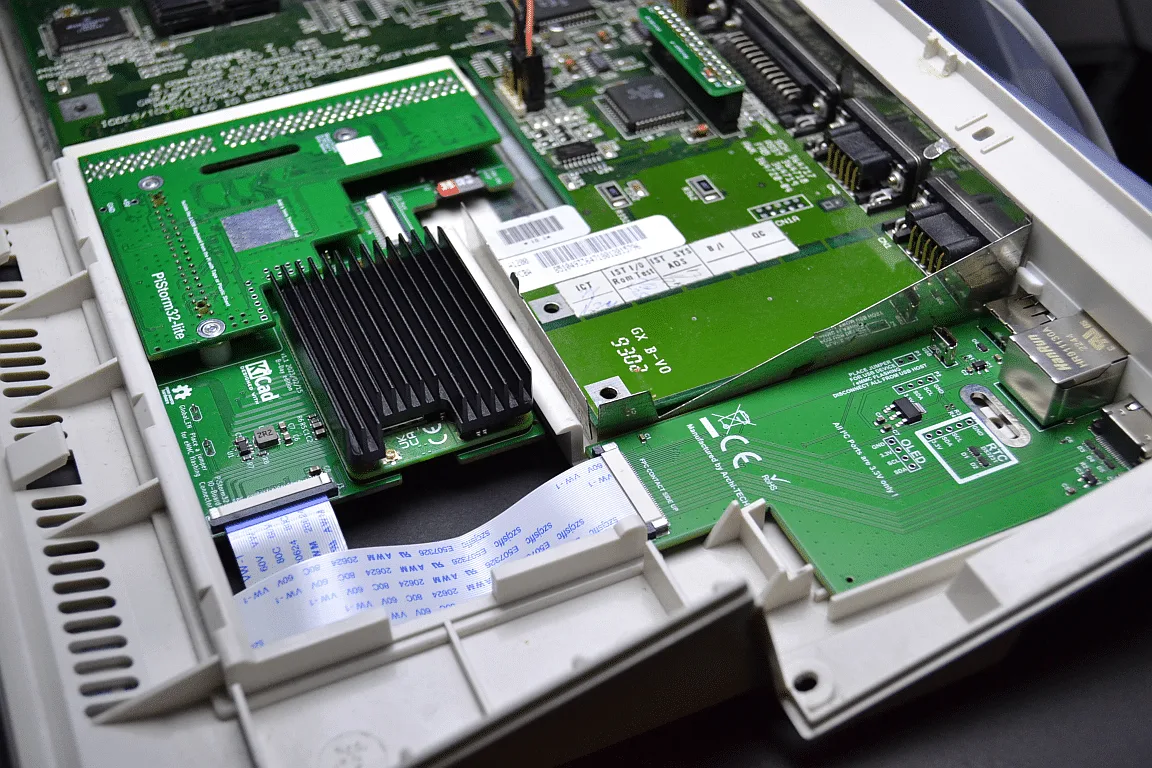

PiStorm32-Lits CM4 Bundle

PiStorm32-Lite CM4, Expansion Breakout & 64Gb SD Card Bundle

£208.33 Ex. VAT

PiStorm32-Lite CM4 bundle with Raspberry Pi CM4 module, expansion breakout with HDMI, Ethernet, USB and 64Gb SD Card. This is fully assembled, just installed Workbench.

What’s included:

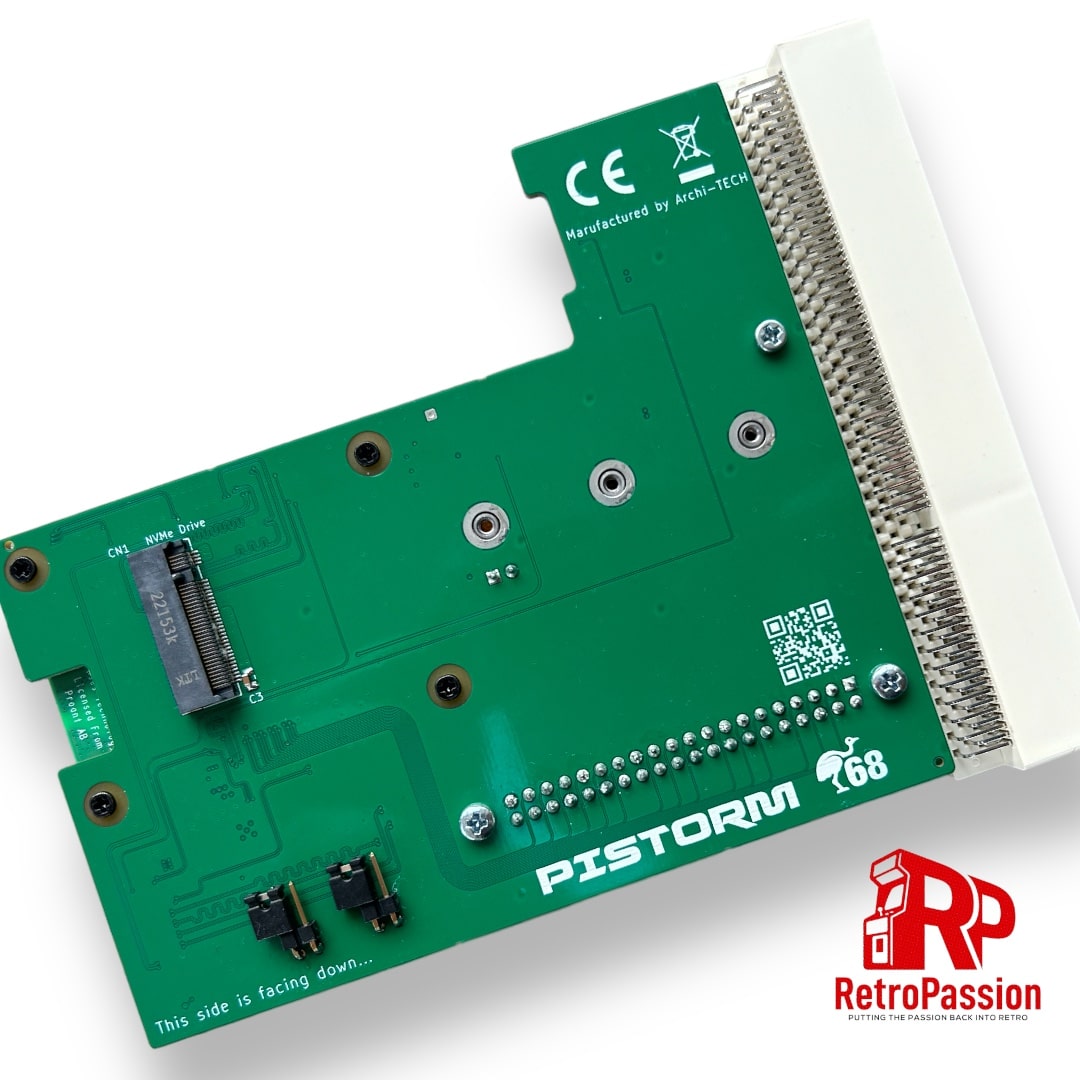

  • Pistorm32-Lite adapter
  • CM4 Adapter (Allows connection of Expansion Breakout and Compute Module 4)
  • Raspberry Pi CM4 module with Wifi (Supports AmiKit also)
  • Passive Cooler

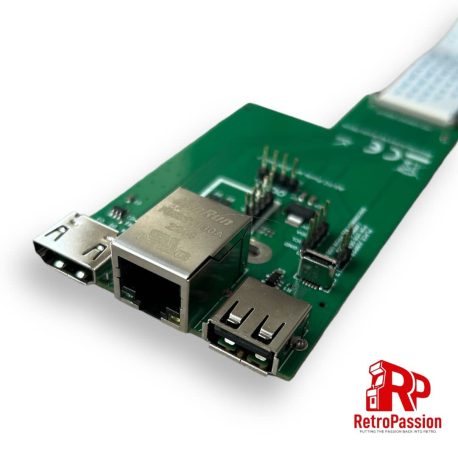

  • Expansion Breakout that provides HDMI, USB and Ethernet Ports
  • SD Card 64GB Sandisk Ultra (pre installed EMU68 on 200MB partition) Optional upgrade to AmiKit Pistorm edition*
  • Flex wire 40 Pin 20cm
  • Printed IO cover (3D printed)





Now with an added option of AmiKit and AmigaOS 3.2.2 plug and play options*. Now with WiFI**!

AmiKit PiStorm32 SD Card



NOTE: The PiStorm32-Lite CM4 product is a open source project and will require some knowledge of the Amiga.

*AmiKit Pistorm Edition requires AmigaOS 3.2 installation disks (ADF) and an internet connection, full details here.

** Wifi (wifipi.device) is still in alpha, which means that it can (and will) contain bugs. For this version you need to set up an unencrypted 2.4GHz wireless network (without a password). However, you can hide it in your router settings so that no one else can see it and connect to it. Future versions will bring WPA/WPA2 encryption.
