ACE2b Amiga A500 A2000 2Mb Chipram Upgrade

£158.33 Ex. VAT

ACE2b Amiga Chipram Extender 2MBytes. It is installed in the socket of the Fat Agnus chip of your OCS/ECS Amiga. It is compatible with these Amiga models:

  • A500 up to board rev. 7
  • A1500 and A2000, Rev. 4.1 and higher
  • CDTV
  • A2500 Rev. 4.1 and higher

The unit requires no soldering, but does require the removal of the existing AGNUS chip from the motherboard. The ACE2b then simply slots in to the existing AGNUS socket and the GARY adapter is socketed between the GARY socket and the GARY chip.

The ACE2b is jumpeless and does not rely on existing memory to be present so no ram is required in the trapdoor of the A500 as the ACE2b has the full 2Mb Chipram is located on the PCB itself, the chip ram on the main board of your Amiga will not be used any more.

ACE2b uses an ECS Agnus 8375 (included) that is switchable between PAL and NTSC video mode by software. It is compatible with Genlock interfaces. ACE2b starts up in NTSC mode. If you own an ACA500 or ACA500plus, you can fix the video mode to your preferred setting.



What’s included:

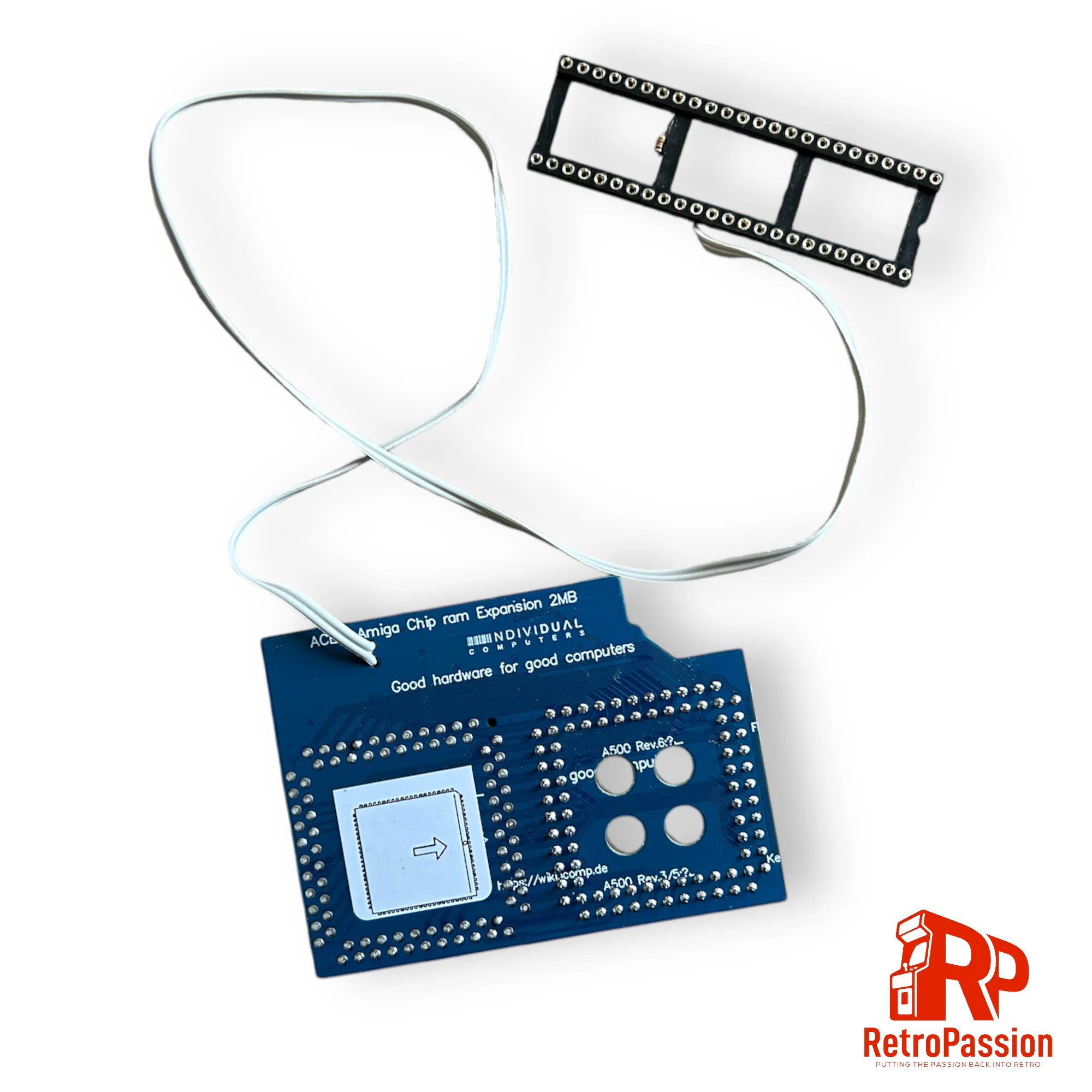

  • ACE2b PCB with Gary Adaptor
  • 8375 2Mb Agnus PLCC



We do offer an installation service, by all means contact us.






SKU: ace2b-A500-A2000 Categories: , , Tags: , ,
