Back to Amiga 1200 Cases
A1200 Case LED Board
£9.16 Ex. VAT

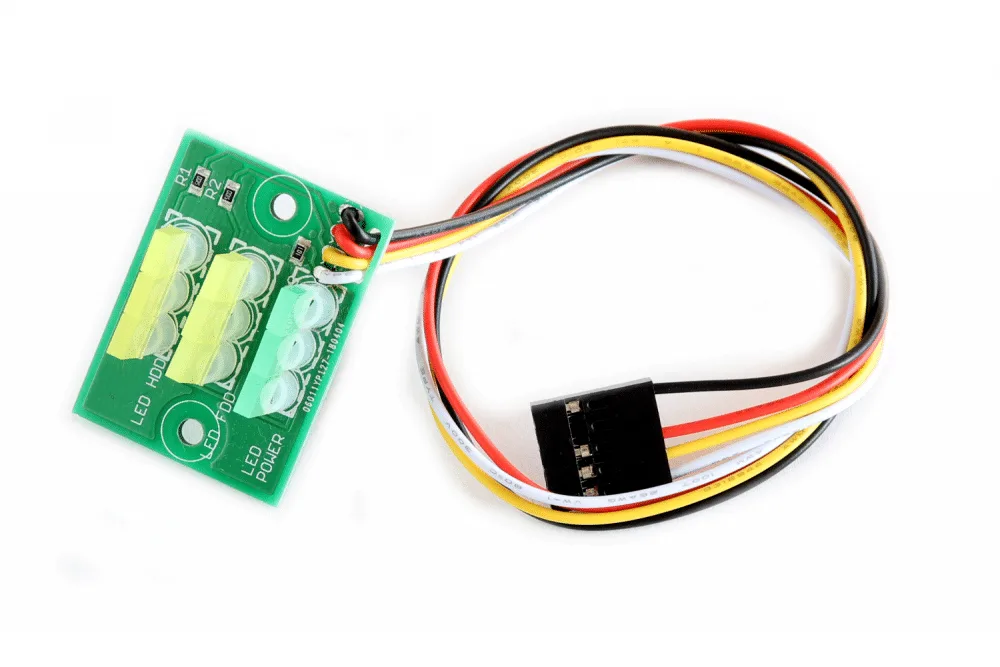

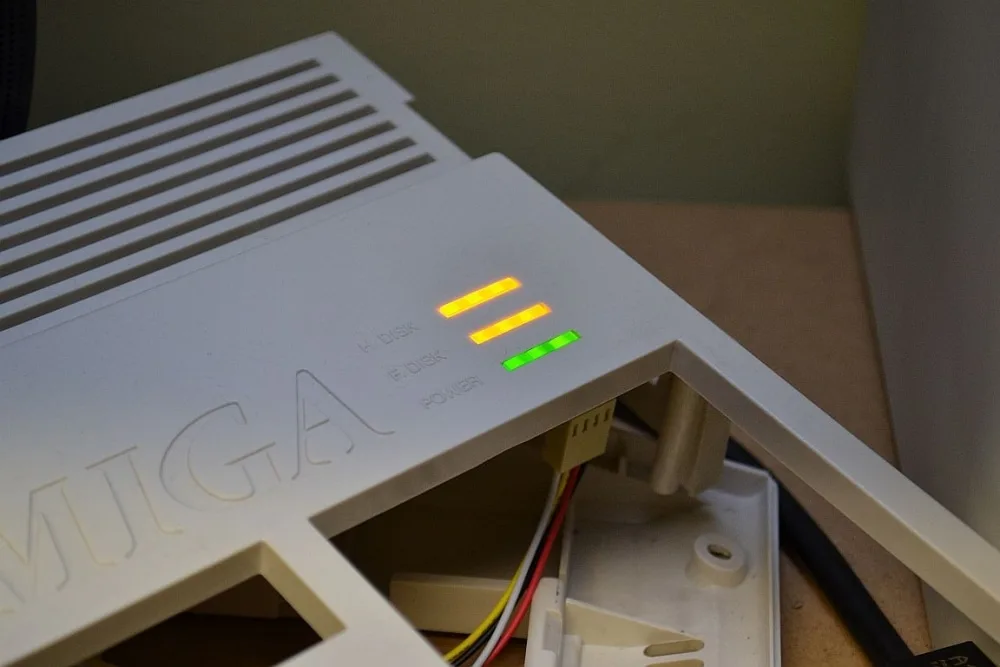

A1200 Case LED board with power LED (green), floppy LED (yellow) and HDD LED (yellow). A simple replacement for your current Amiga 1200 LED board if its faulty or a great addition for the new A1200.net cases.
Stock expected late October 2022
Email me when stock is available
You may also like…
BIFROST A1200 Heimdall Edition LED Replacement
Bifrost A1200 Heimdall Edition board is a direct keyboard LED replacement board for your Amiga 1200 computer. It uses some of the latest cutting edge technology to bring you an updated, fully feature packed and highly customisable cosmetic experience for your beloved retro computer, available literally at your fingertips. Customize the POWER-, FLOPPY- and HARDDRIVE LEDs to any colours and brightness of your choice using the LEDs themselves as programming buttons.
You can also choose from pulsating effects as well as colour cycling effects. Each channel comes with three LEDs and all LEDs are individually programmable. All in all you will find that the A1200 Bifrost, can deliver over 150 million colour and brightness combinations to EACH channel making the Bifrost a great choice for putting that personal touch to your Amiga machine.
The Bifrost also supports PCMCIA signal and/or up to three custom devices on separate input channels, utilizing a secondary indicator layer on each of the LED rows. Furthermore, it supports the new CAPS LOCK Bifrost module not allowing for any original lights to escape user customization.
What's included:
- 1x A1200 Bifrost, Heimdall Edition
- 1x A1200 CL Module
- 1x 30cm 4-lead connection wire
- 1x 30cm 1-lead connection wire
- 1x Bleed Shield
- 1x Diffuser Holder
- 6x Normal Diffusers (3x for T1-, 3x for T2-cases)
- 6x Tall Diffusers (3x for T1-, 3x for T2-cases)
- 1x DIY PCMCIA enabling kit
A1200 Bifrost, Heimdall Edition - Demo
[kad_youtube url="https://youtu.be/xSmitjyRTaE" ]BIFROST A1200 Heimdall Edition - Advanced Mixing
[kad_youtube url="https://youtu.be/qa4u2WIjMVw" ] These units will fit any Amiga 1200 case including the A1200.NET cases we sell. Full manual on fitting and setting up is available here Photo credits: Conny Larsson - Product image Johnnathan TaylorRelated products
&url=https://www.retropassion.co.uk/product/commodore-amiga-psu-for-a500-600-1200-duo-edition/&media=https://i0.wp.com/www.retropassion.co.uk/wp-content/uploads/2021/08/Amiga-PSU-DUO-Amiga-A500-600-1200-and-CD32.jpg?fit=1024%2C1024&ssl=1){kind=link}
Commodore Amiga PSU for 2 x A500/600/1200 (DUO EDITION)
Commodore Amiga PSU DUO EDITION for 2 x A500/A600/A1200, up to 8A at 5VDC strong, adjustable PSU for regular and accelerated Commodore Amiga A500, A500+, A600, A1200.
The new Amiga PSU DUO Edition is a modern, 50W strong replacement power supply unit for Commodore Amiga computer systems.provides stable, filtered, adjustable 5VDC (up to 8.0A), 12VDC (up to 0.5A) and -12VDC (up to 0.15A) by industrial grade components. Now your Vampire, Blizzard, ACA or TF536 accelerator will get enough juice to work flawlessly with full MHz clocks. Factory trimmed for stock Amiga 500 reference load, may be adjusted to give exact 5VDC with 2-3x heavier loads.
Warning! Risk of electrical shock and energy hazard when opened. All failures should be examined by a qualified technicians only. Risk of fire or electrical shock. The ventilation holes should be protected from foreign objects or dripping liquids. Please do not install power supplies in places with high ambient temperature or close to the heat source. Enclosed power supplies are intent to work in indoor locations, it's not allowed to use power supplies outdoor, in dust or high moisture. Output current and output wattage must not exceed the rated values. This replacement Amiga PSU has been designed for Commodore Amiga 1200 vintage computer systems only and should be considered as an integral component of Amiga computer system. Do not connect to any other devices as it's not a general purpose PSU. Manufacturer is not responsible for any consequences of unauthorised or arbitrary repairs, modifications or incorrect usage. Please notice that new, properly working replacement Amiga PSU is reducing the system's potential fail rate but still is not guaranteeing that entire Amiga system will work correctly (it's >30 years old).
Key features:
- 2 x A500 A500+ A600 A1200 compatible (rectangular 5pin DIN plug)
- Stabilized, double protected +5VDC up to 8.0A rated output (total, 4A per channel max)
- Stabilized +12VDC up to 1.2A rated output (0.6A per channel max)
- Stabilized -12VDC up to 0.15A rated output
- Trim potentiometer for 5VDC fine adjustments (5-5.5V range) common for both outputs
- Double over current protection, individual for each output
- Durable main AC power On/Off switch
- Set of LED status indicators (green 5VDC, yellow 12VDC, blue -12VDC)
- Eco friendly design: consumes ~20% less power compared to original PSU set
- Configurable set of detachable output cables. Versions for regular Amiga 500/600/1200 or CD32/A590 are available (1.6 m length)
- Detachable input AC cable allowing you to use your own desired cable length (cable included)
- Weight only 0.3 KG
- Universal AC input range to support all worldwide power standards (accepts 110-240 VAC)
- Meets safety standards: UL60950-1, TUV EN60950-1, ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1
- UK Stock
Warning! Risk of electrical shock and energy hazard when opened. All failures should be examined by a qualified technicians only. Risk of fire or electrical shock. The ventilation holes should be protected from foreign objects or dripping liquids. Please do not install power supplies in places with high ambient temperature or close to the heat source. Enclosed power supplies are intent to work in indoor locations, it's not allowed to use power supplies outdoor, in dust or high moisture. Output current and output wattage must not exceed the rated values. This replacement Amiga PSU has been designed for Commodore Amiga 1200 vintage computer systems only and should be considered as an integral component of Amiga computer system. Do not connect to any other devices as it's not a general purpose PSU. Manufacturer is not responsible for any consequences of unauthorised or arbitrary repairs, modifications or incorrect usage. Please notice that new, properly working replacement Amiga PSU is reducing the system's potential fail rate but still is not guaranteeing that entire Amiga system will work correctly (it's >30 years old).
Sum A1200 USB Keyboard Adaptor
Sum A1200 USB Keyboard adaptor is a USB interface for HID keyboards (ONLY) without the need for installing additional AmigaOS software drivers. Device's installation procedure consists of simply attaching it the U7 chip located on A1200's motherboard. Additional feature of the adapter is its "Bootloader" function allowing future firmware upgrades.
Sum A1200 USB comes with dedicated configuration mode, which becomes available when you by pressing both the Right-Shift + Pause keys together. User preferences are saved to the built-in EEPROM memory.
Key Features of the Sum A1200
- Support for both USB HID and USB-PS / 2 keyboards (Not gaming or LED backlit keyboards).
- A1200 compatibility (U7 chip-attached).
- Built-in USB stack.
- Configuration mode for PC keyboard (activated by R-Shift + Pause key combination),
- Configuration mode for Mac keyboard (activated by R-Shift + F19 key combination).
- Built-in EEPROM memory enabling user preferences storage.
- "Bootloader" function allowing future firmware upgrades.
- "Status" indicator LED providing information about device's state.
- built around 16-bit Microchip microcontroller utilizing nanoWatt technology.
- Non-blocking keyboard A1200 - You can still use the inbuilt A1200 keyboard.
Entering configuration mode (R-Shift + Pause)
- F1 - RESET type - software (A2000, A3000, A4000, CD32, CDTV) or hardware (A600, A1200),
- F2 - mapped Amiga Right to Alt Right,
- F10 - view keycode (on / off),
- F12 - display configuration
| Amiga keys | USB keyboard |
|---|---|
| Amiga reset | CTRL + L-Win + R-Win CTRL + L-Alt + R-Alt CTRL + L-Alt + Del |
| Help | F12 |
| L-Amiga | L-Win |
| R-Amiga | R-Win |
Amiga A1200 White Case
Amiga A1200 white case new, manufactured by A1200.net
What's included?
Keyrah V3 for the Amiga 1200/600, C64, VIC 20 and C16[/caption]
Keyrah V3 is an IO adaptor that allows you to use the original keyboards of the Commodore Amiga 600 and 1200, Commodore 64, VIC-20 and C-16 within their respective cases. The purpose of this you can then install a Raspberry PI which uses the original keyboard of that computer and providing 2 x D9 ports. The new Amiga 1200 case has mounts are located at middle top of bottom shell. This location make the keyboard adapter available for Raspberry Pi or MiST board. Original Amiga 1200 keyboard ribbon will fit nicely just at the right place on the keyboard adapter board. I/O connectors are accessible through rear panel I/O slots.
[/pane]
[/accordion]
So what are the differences between the original Commodore case and the New A1200 case?
- Top case including enhancements
- Bottom case including enhancements
- Enhanced bottom trapdoor with extra vents.
- Enhanced rear trapdoor + extra plastic holder DVI / VGA shaped hole.
- Rubber feet
- Set of screws
How are these brand new?
In 2016 840 Amiga users made it possible in supporting a Kickstarter to reproduce the Amiga 12000 case, the new A1200 cases are made using Injection Molding manufacturing technique to produce top and bottom shells as well as trapdoors and parts. The process implies the use of 3 new moulds, the first one is for the top shell, second mould for the bottom shell and last one for trapdoors and parts, all produced using brand new moulds.Enhancements galore:
The Amiga community has never died and some have produced some great add-ons over the years to make sure the Amiga is still relevant and useful today as it was back in the 80's/early 90s and these cases take full advantage of that weather that's simply transferring your existing motherboard from your existing Amiga 1200 or have a luxury of installing a MiST FPGA Board. Below are few more enhancements: [accordion] [pane title="External CF Adaptor" start=open] A CF slot can be opened up on the side of the A1200 case to allow easy access to what would be the CF card within the A1200 itself. [/pane] [pane title="MiST FPGA Board"] MiST is a FPGA based modern board that implements classic 16bit computers like the Commodore Amiga, Atari ST and 8bit systems like the Commodore 64, ZX-Spectrum, MSX, Atari XL/VCS, Apple II, Colecovision, Sega Master System, NES, SNES as well as Arcade machines. The primary difference between the MiST is that its NOT emulation. The new A1200 case has mounts to mount the MiST FPGA within the A1200 case. [/pane] [pane title="Raspberry PI"] Yes you can mount a Raspberry PI 2/3 within the new A1200 case with the use of the mounts already part of the case for a nice clean solution. [/pane] [pane title="Keyrah V2"] [caption id="attachment_18644" align="aligncenter" width="300"]
Keyrah V3 for the Amiga 1200/600, C64, VIC 20 and C16[/caption]
Keyrah V3 is an IO adaptor that allows you to use the original keyboards of the Commodore Amiga 600 and 1200, Commodore 64, VIC-20 and C-16 within their respective cases. The purpose of this you can then install a Raspberry PI which uses the original keyboard of that computer and providing 2 x D9 ports. The new Amiga 1200 case has mounts are located at middle top of bottom shell. This location make the keyboard adapter available for Raspberry Pi or MiST board. Original Amiga 1200 keyboard ribbon will fit nicely just at the right place on the keyboard adapter board. I/O connectors are accessible through rear panel I/O slots.
[/pane]
[/accordion]
So what are the differences between the original Commodore case and the New A1200 case?
- The plastic is more resistant to UV alteration. To avoid the case to turn yellow over time.
- All screws are secured with metal brass inserts. No more broken plastic clips.
- The bottom trapdoor has extra vents for a better case air flow.
- 2 new rear trapdoors are available to accommodate VGA and DVI. The third one is a Plain door.
- The case supports the following modern devices : Raspberry Pi©, MiST© FPGA, Keyrah© V3 keyboard adapter, RapidRoad© Double USB and Lotharek© HxC Floppy emulator, Flashfloppy
TF1260 TerribleFire A1200 Accelerator – NO CPU
TF1260 TerribleFire Amiga 1200 Accelerator which hosts 64Mb Fast Ram, IDE connector (DOES NOT INCLUDE 68060 PROCESSOR). The TF1260 is one of the best 060 accelerators you can purchase for the Amiga 1200 And is the next step up after the TF1230 A1200 Accelerator add-on we sell for those that want that large speed jump.
Full specs:
- 128MByte of fast-ram.
- IDE Interface - Driver required - ehide.device
- Compatible with any A1200 motherboard revision.
- Fits in your old/new stock A1200 case!!!
- Just add your choice of 68060 processor!
- MC68060RC50 or XC68060RC50 (Complete with MMU & FPU)
- MC68LC060RC50 or XC68LC060RC50 (MMU No FPU)
- MC68EC060RC50 or XC68EC060RC50 (No MMU or FPU)
- Timing fix is strongly recommended on your A1200 motherboard. We can do this free of charge if you send your board to us (return shipping does need to be covered).
- Kickstart ROM 3.1, 3.1.4, 3.2, 3.x or 3.9 (not compatible with 3.0).
- TF328 - 8Mb Fast Ram board and IDE socket for the Amiga CD32
- TF330 - 68030 Processor, 64Mb Fast Ram and IDE socket for the Amiga CD32
- TF536 - 68030 Processor, 64Mb Ram and IDE interface for the Amiga A500 and A500 Plus
- TF360 - 68060 Processor other specs TBC for the Amiga CD32
- TF1230 - 68030 Processor 128Mb Ram and IDE interface for the Amiga 1200
- TF4060 - 68060 Processor 128Mb Ram for the Amiga 4000
- TF1200 - Buffee Adaptor + 5.5Mb/8Mb (you will need the new Buffee Processor
- For every TF1260 sold we donate a percentage of the sale to Stephen Leary to support further TF card developments and we also support our builders.
- Timing fix is recommended on your A1200 motherboard. We can do this free of charge if you send your board to us (return shipping does need to be covered).
- Cards sold as is, they are fully tested and a video will be shared of your card working before shipping.
- We don't provide any advice or support for overclocking these cards, these are sold as 50Mhz. if you wish to overclock that is your choice. Heatsink and or fan required for overclocking.
