72-Pin Simm Socket/Slot – Amiga 4000

Name: 72-Pin Simm Socket/Slot - Amiga 4000
SKU: 72pinsimm-A4000
Price: 19.99 GBP
Availability: InStock

£16.66 Ex. VAT

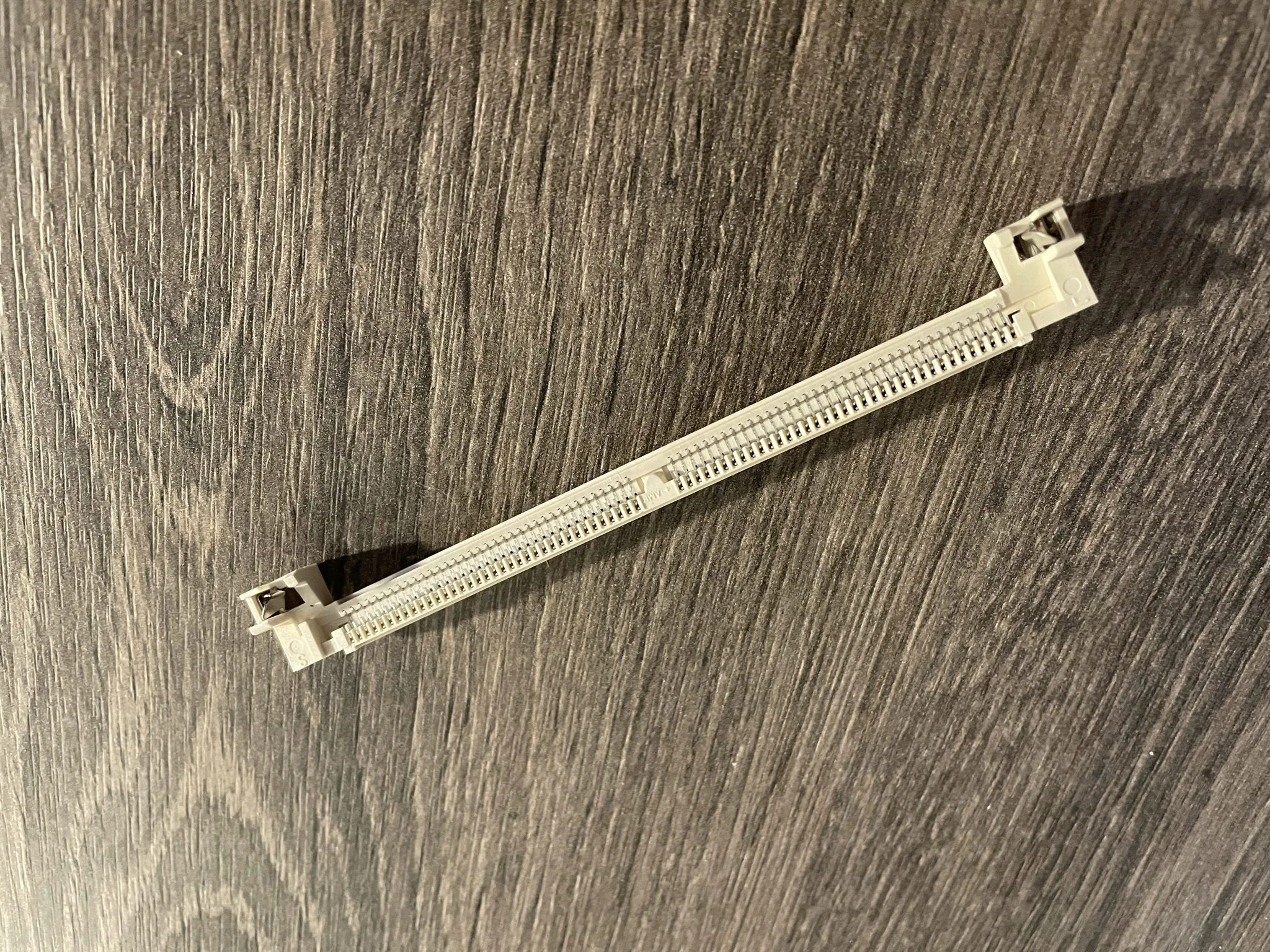

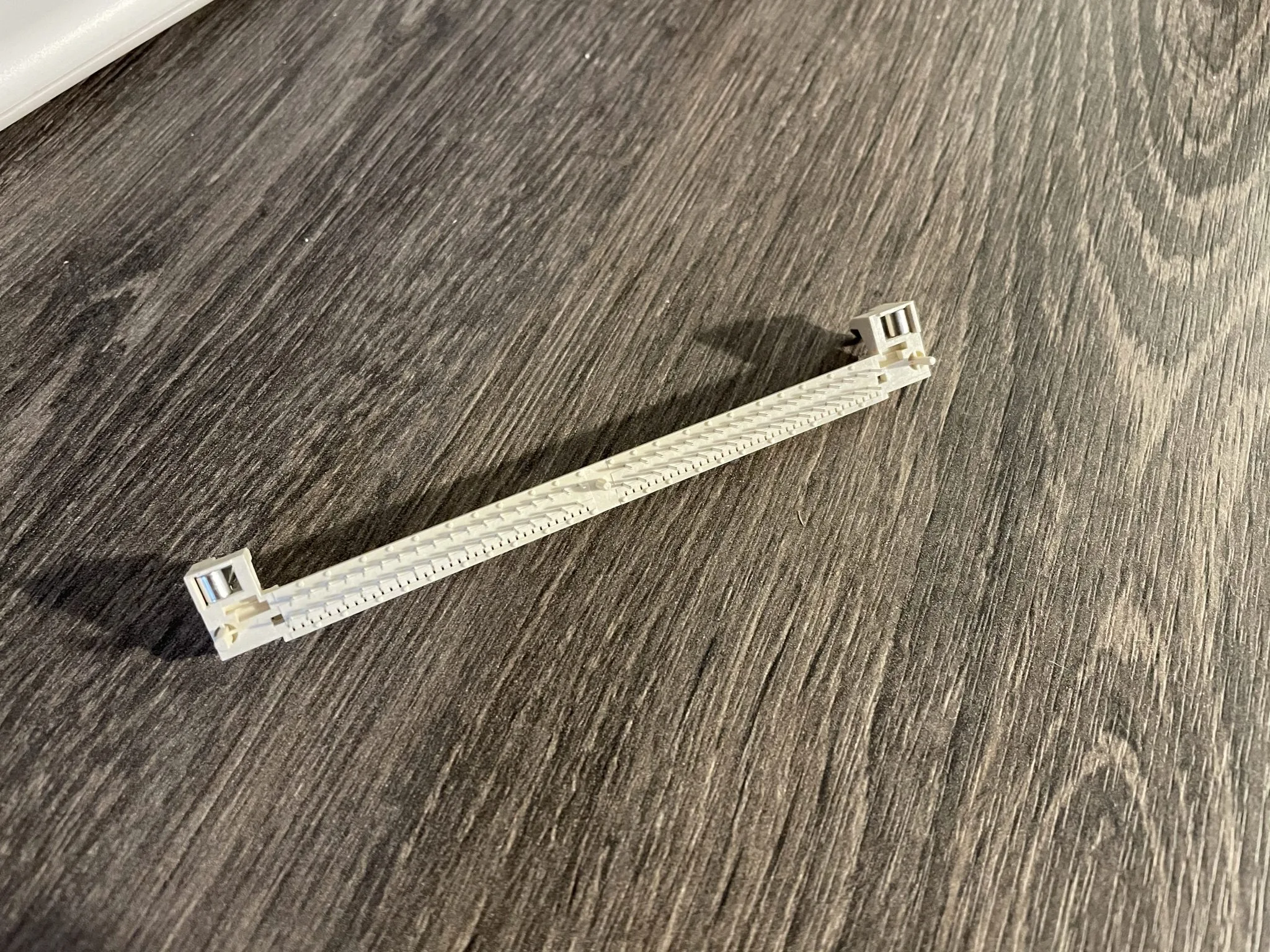

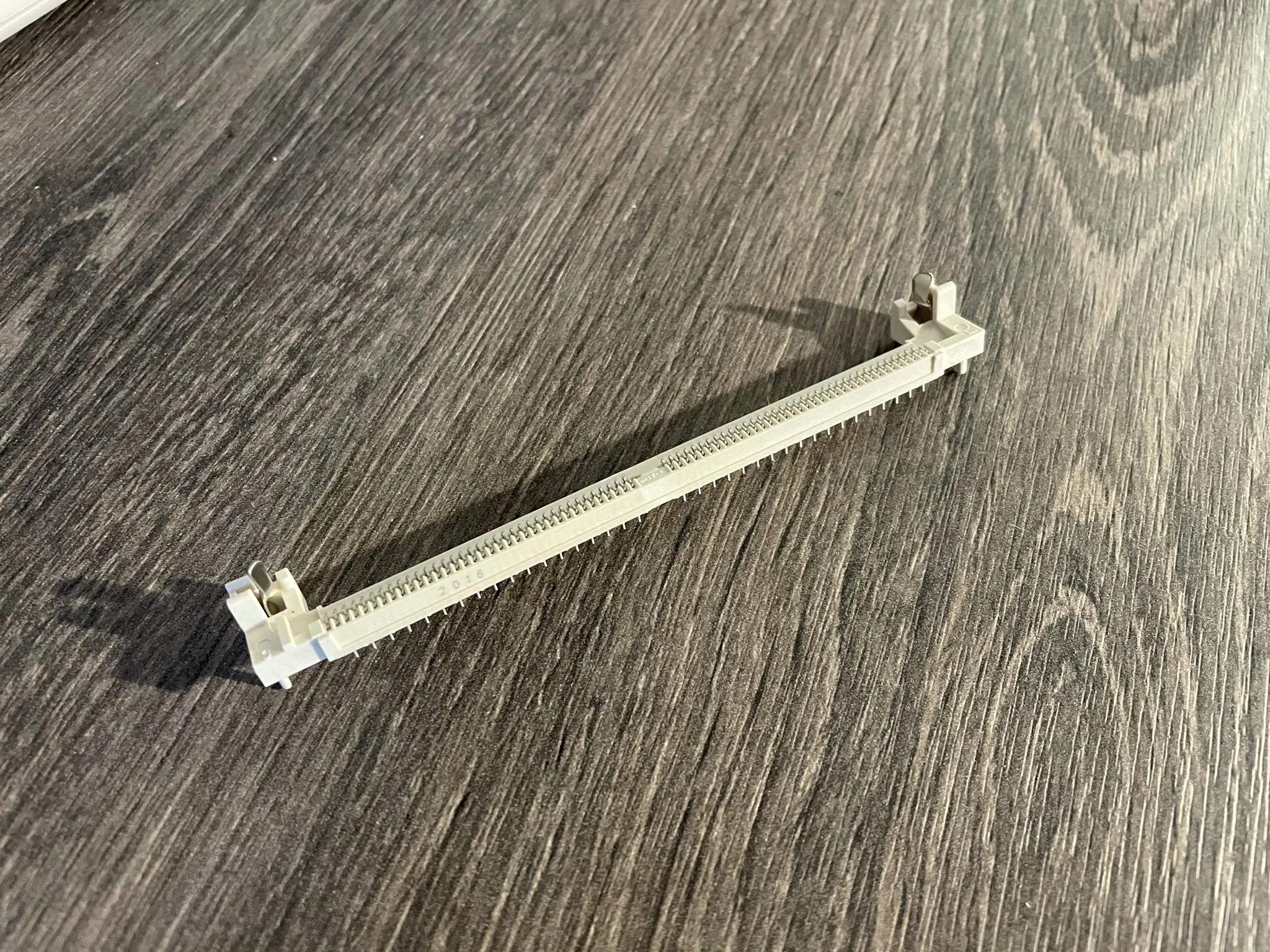

72 Pin Simm Socket/Slot replacement for the Amiga 4000 Desktop

These are brand new and are the correct socket for the Commodore Amiga 4000 Desktop or the Amiga 4000 Replica project.

Specifications

Pitch: 1.27 mm
Termination Style: Through Hole
Contact Plating: Tin
Mounting Angle: 22 deg

We also offer 72 Pin Simm Socket replacement service here

SKU: 72pinsimm-A4000 Category: Amiga A4000 Tags: 4000, 4000D, 72 Pin Simm Socket, Amiga, Simm Slot, Simm Socket
