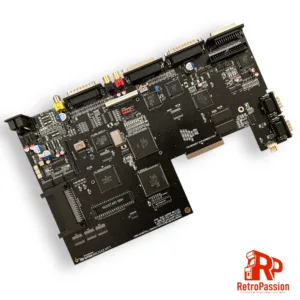

Amiga A600 Junior motherboard, version June Bug Junior Rev 1.3.1. The Amiga A600 Junior is a reverse engineered A600 board by Róbert Tihanyi and is a full A600 board reimagind with some extras and modifications added. A600 Junior is based on the Commodore A600 Rev 1.5 and has these enhancments:

• Corrected PCB layout, removed “nowhere” traces.
• Main Vcc rails stronger.
• Informative silkscreen.
• Values modified in audio (opamp) circuit, unior sounds better than a Rev1.5.
• CXA2075M Video Encoder
• DriveSelector. Like ReAmiga A1200 but it can handle all the 4 drives, DF0 to DF3. You can assign ANY DriveID to ANY physical drive.
• R102 moved to backside. This is the “Vampore-resistor” which are the reasony why accelerator’s sockets needs to be grinded. You don’t have to grind anymore on a Jr. board.
• HDD bay holes are now standard 3.0mm holes insted of the original oval. HDD cradles still can be used properly, but if not, you can also use them as mounting holes for accelerators. In this way, it is far more easy than on original boards.

  Motherboard PCB, passive compoents arfe new, however the custom chips a some of the ports are recycled   ** A600 Junior board does not come with any metal shielding. or kickstart rom.   3 Month RTB Warranty.
